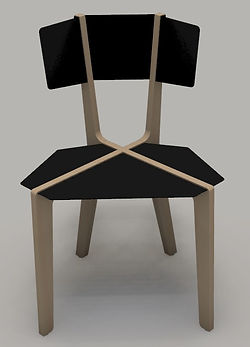

Digital Render to Scale
Digital Render to Scale
A furniture replication project based off a conceptual chair design by OutOfStock.
The chair was digitally modelled on Rhino 8, producing templates to hand cut each component from wood or sheet metal.
"NAKED"
By OutOfStock

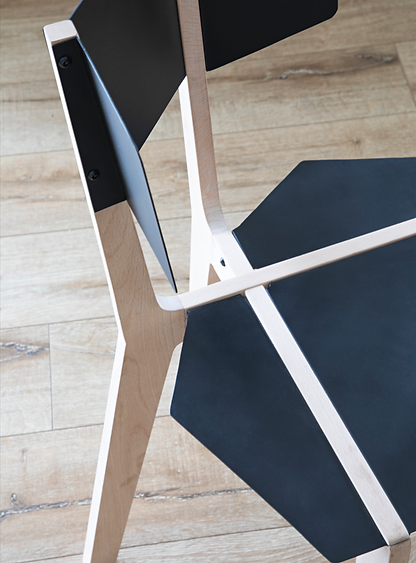

Realised Furniture Piece
Photographed by
TECHNICAL PLANS
Environmental render done on Rhino 8
"Naked" by OutOfStock
Technical projection drawings of "Naked". Modelled on Rhino 8

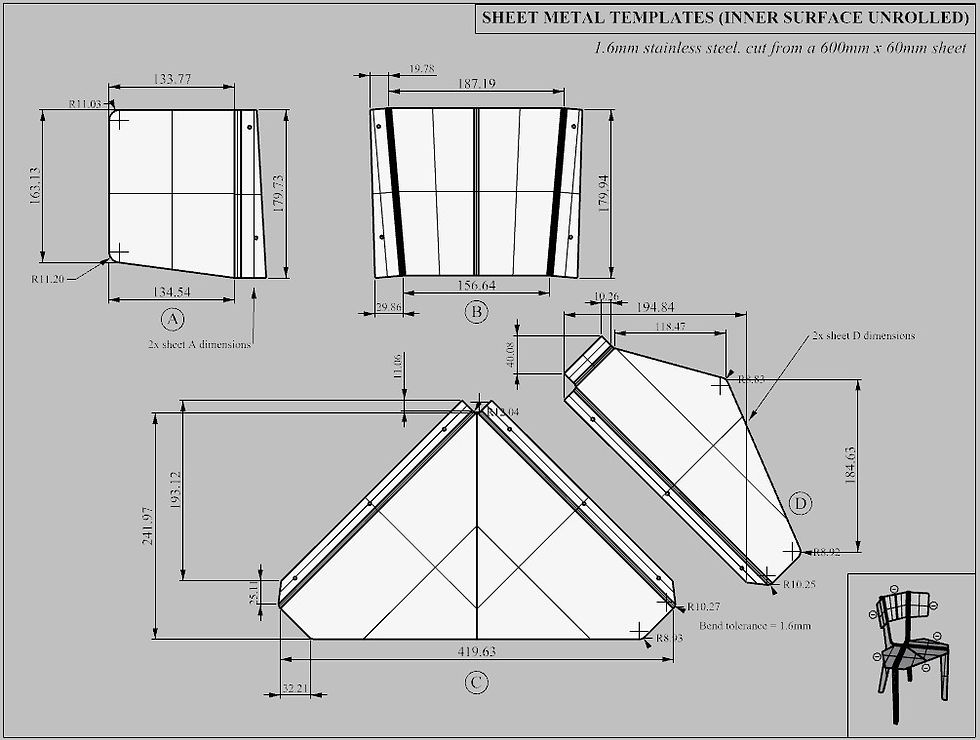

Metal Components
Technical drawings of sheet metal components

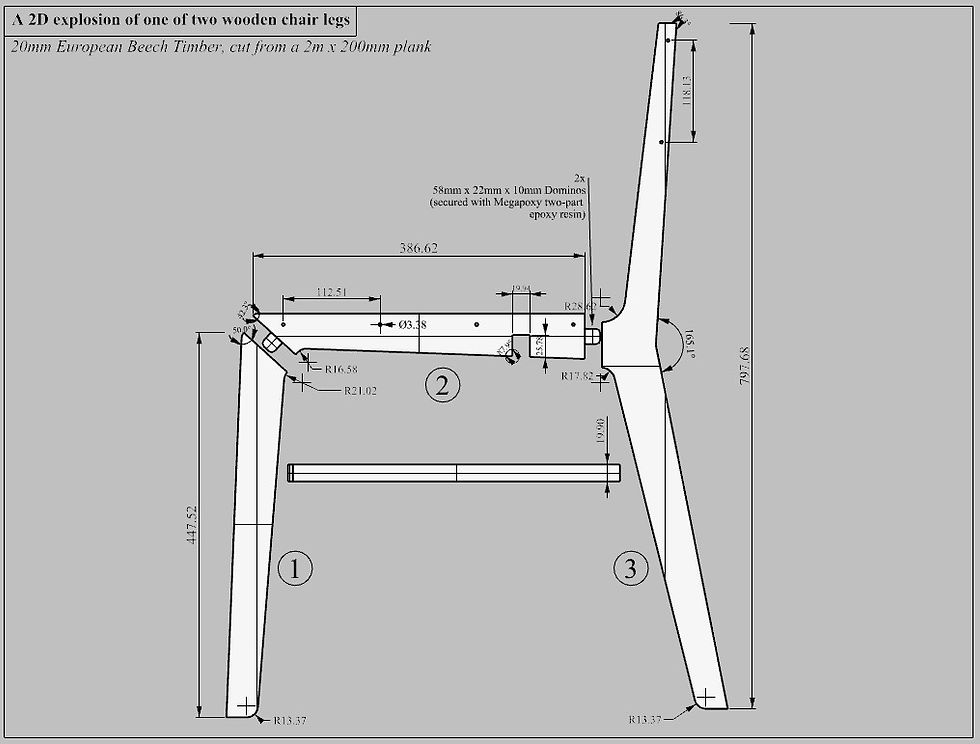

Wooden Frame
Technical drawings of wooden structural components
"Naked" by OutOfStock
Technical projection drawings of "Naked". Modelled on Rhino 8
1/3
